THE 4
THE ALL-NEW BMW 4 SERIES GRAN COUPÉ: ENGINES & TECHNICAL DATA

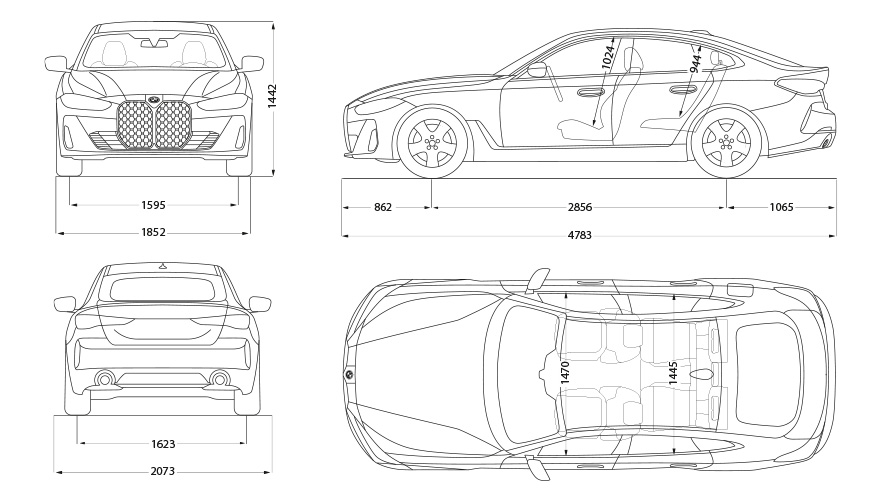

The key facts and figures on the new BMW 4 Series Gran Coupé at a glance: engines, consumption, CO2 emissions and dimensions. Check out all the performance data such as displacement, horsepower, torque and acceleration – and find out which engine best meets your needs.
The key facts and figures on the new BMW 4 Series Gran Coupé at a glance: engines, consumption, CO2 emissions and dimensions. Check out all the performance data such as displacement, horsepower, torque and acceleration – and find out which engine best meets your needs.
TECHNICAL DATA OF THE ALL-NEW BMW 4 SERIES GRAN COUPÉ.
- BMW 420i Gran Coupé
- BMW 430i Gran Coupé
- BMW M440i xDrive Gran Coupé
No search result found. Please try another input

Unladen weight EU in kg | 1,695 |
---|---|
Max. permissible weight in kg | 2,175 |
Permitted load in kg | 555 |
Permitted axle load front/rear in kg | 1,015/1,245 |
Luggage capacity min. (seats up or roof down) in l | 470 |
Luggage capacity max. (seats down or roof up) in l | 1,290 |
Trailer load (unbraked) in kg | 750 |
Trailer load 8% (braked) in kg | 1,600 |
Trailer load 12% (braked) in kg | 1,600 |
Cylinders/valves | 4/4 |
---|---|
Capacity in ccm | 1,998 |
Stroke/bore in mm | 94.6/82.0 |
Engine power in kW (hp) at 1/min | 135 (184)/5,000-6,500 |
Engine torque (Nm) at 1/min | 300/1,350-4,000 |
Compression ratio : 1 | 11.0 |
Top speed in km/h | 235 |
---|---|
Acceleration 0–100 km/h in s | 7.9 |
Combined in l/100 km | 6.5 |
---|---|
CO2 combined emissions in g/km | 149 |
Tank capacity, approx. in l | 59 |
Tyre dimensions front | 225/55 R17 101 Y XL |
---|---|
Tyre dimensions rear | 225/55 R17 101 Y XL |
Wheel dimensions and material front | 7.5 J x 17 inches, light-alloy |
Wheel dimensions and material rear | 7.5 J x 17 inches, light-alloy |
Unladen weight EU in kg | 1,720 |
---|---|
Max. permissible weight in kg | 2,200 |
Permitted load in kg | 555 |
Permitted axle load front/rear in kg | 1,025/1,255 |
Luggage capacity min. (seats up or roof down) in l | 470 |
Luggage capacity max. (seats down or roof up) in l | 1,290 |
Trailer load (unbraked) in kg | 750 |
Trailer load 8% (braked) in kg | 1,600 |
Trailer load 12% (braked) in kg | 1,600 |
Cylinders/valves | 4/4 |
---|---|
Capacity in ccm | 1,998 |
Stroke/bore in mm | 94.6/82.0 |
Engine power in kW (hp) at 1/min | 180 (245)/4,500-6,500 |
Engine torque (Nm) at 1/min | 400/1,550-4,400 |
Compression ratio : 1 | 10.2 |
Top speed in km/h | 250 |
---|---|
Acceleration 0–100 km/h in s | 6.1 |
Combined in l/100 km | 6.6 |
---|---|
CO2 combined emissions in g/km | 151 |
Tank capacity, approx. in l | 59 |
Tyre dimensions front | 225/55 R17 101 Y XL |
---|---|
Tyre dimensions rear | 225/55 R17 101 Y XL |
Wheel dimensions and material front | 7.5 J x 17 inches, light-alloy |
Wheel dimensions and material rear | 7.5 J x 17 inches, light-alloy |
Unladen weight EU in kg | 1,870 |
---|---|
Max. permissible weight in kg | 2,380 |
Permitted load in kg | 555 |
Permitted axle load front/rear in kg | 1,145/1,325 |
Luggage capacity min. (seats up or roof down) in l | 470 |
Luggage capacity max. (seats down or roof up) in l | 1,290 |
Trailer load (unbraked) in kg | 750 |
Trailer load 8% (braked) in kg | 1,800 |
Trailer load 12% (braked) in kg | 1,800 |
Cylinders/valves | 6/4 |
---|---|
Capacity in ccm | 2,998 |
Stroke/bore in mm | 94.6/82.0 |
Engine power in kW (hp) at 1/min | 275 (374)/5,500-6,500 |
Engine torque (Nm) at 1/min | 500/1,800-5,000 |
Compression ratio : 1 | 10.2 |
Top speed in km/h | 250 |
---|---|
Acceleration 0–100 km/h in s | 4.7 |
Combined in l/100 km | 8.2 |
---|---|
CO2 combined emissions in g/km | 187 |
Tank capacity, approx. in l | 59 |
Tyre dimensions front | 245/45 R18 100 Y XL |
---|---|
Tyre dimensions rear | 245/45 R18 100 Y XL |
Wheel dimensions and material front | 8.5 J x 18 inches, light-alloy |
Wheel dimensions and material rear | 8.5 J x 18 inches, light-alloy |
Fuel consumption and CO2 emissions of the BMW 4 Series Gran Coupé.
BMW M440i xDrive Gran Coupé:
Fuel consumption in l/100 km (combined): 8.5–8.0
CO2 emissions in g/km (combined): 194–181
Official data on fuel consumption and CO2 emissions were determined in accordance with the mandatory measurement procedure and comply with Regulation (EU) 715/2007 valid at the time of type approval. In case of a range, figures in the WLTP take into account any optional equipment. For newly type-tested vehicles since 01.01.2021, the official data no longer exist according to NEDC, but only according to WLTP. For more information on the WLTP and NEDC measurement procedures, see www.bmw.de/wltp.
Fuel consumption and CO2 emissions of the BMW 4 Series Gran Coupé.
BMW M440i xDrive Gran Coupé:
Fuel consumption in l/100 km (combined): 8.2
CO2 emissions in g/km (combined): 187Official data on fuel consumption and CO2 emissions were determined in accordance with the mandatory measurement procedure and comply with Regulation (EU) 715/2007 valid at the time of type approval. In case of a range, figures in the WLTP take into account any optional equipment. For newly type-tested vehicles since 01.01.2021, the official data no longer exist according to NEDC, but only according to WLTP. For more information on the WLTP and NEDC measurement procedures, see www.bmw.de/wltp.
