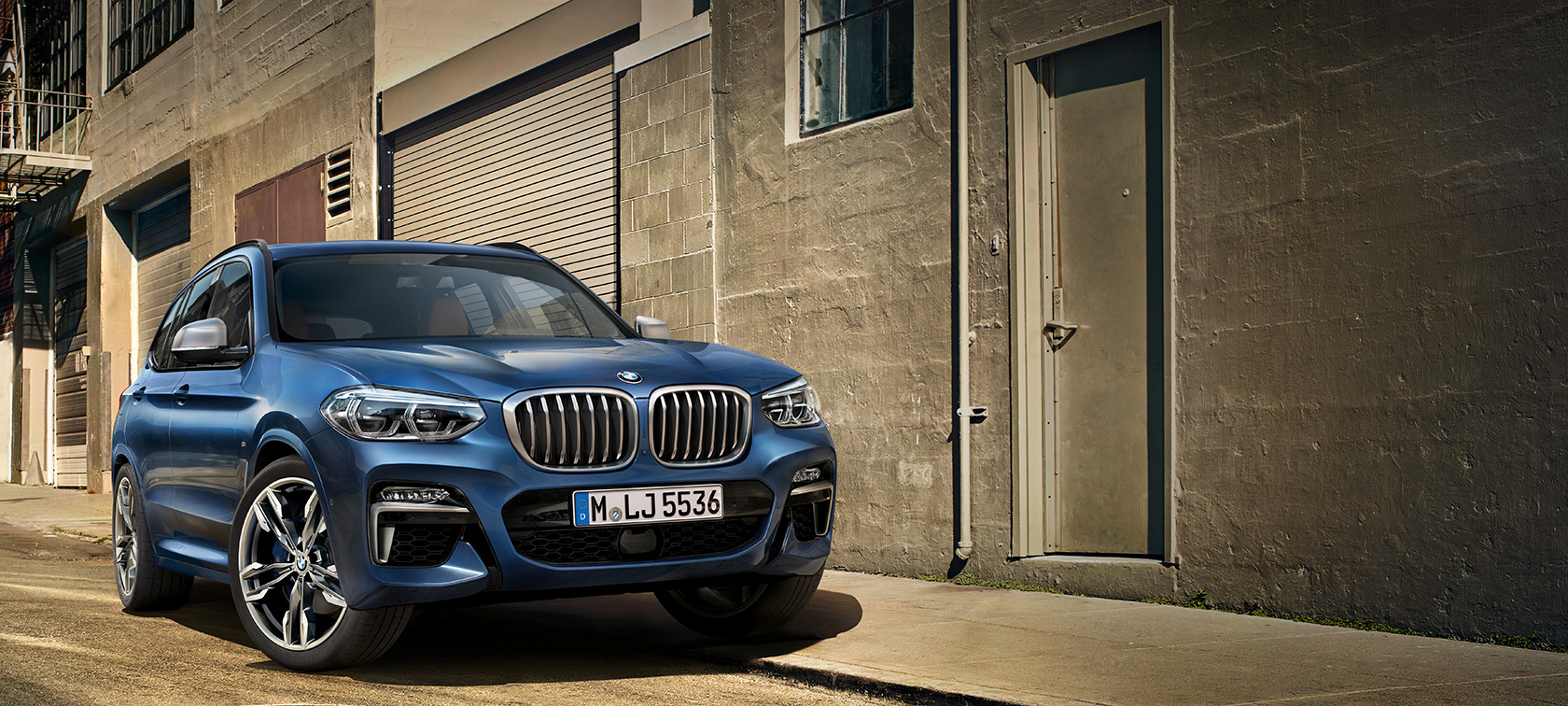

BMW X3 M40i, shot in front of house wall

THE BMW X3.

Details, equipment and technical data for the BMW X3.

THE BMW X3.

Details, equipment and technical data for the BMW X3.

THE BMW X3.Details, equipment and technical data for the BMW X3.

MODELS AND EQUIPMENT.

Models and equipment lines for the BMW X3.

Model xLine

The Model xLine underlines the powerful character of the BMW X3. Particularly effective are the specific design elements in matt Aluminium on the vertical slats of the BMW kidney grille, the side skirt panelling as well as the underbody protection at the front and rear. Additional highlights include the optional 20" light alloy wheels Y-spoke 695 style in Orbit Grey gloss-lathed as well as the first-class sport seats for driver and front passenger together with exclusive interior trims in 'Fineline' Cove.

Show Line Details
BMW X3 M40i, Model xLine

The Model xLine underlines the powerful character of the BMW X3. Particularly effective are the specific design elements in matt Aluminium on the vertical slats of the BMW kidney grille, the side skirt panelling as well as the underbody protection at the front and rear. Additional highlights include the optional 20" light alloy wheels Y-spoke 695 style in Orbit Grey gloss-lathed as well as the first-class sport seats for driver and front passenger together with exclusive interior trims in 'Fineline' Cove.

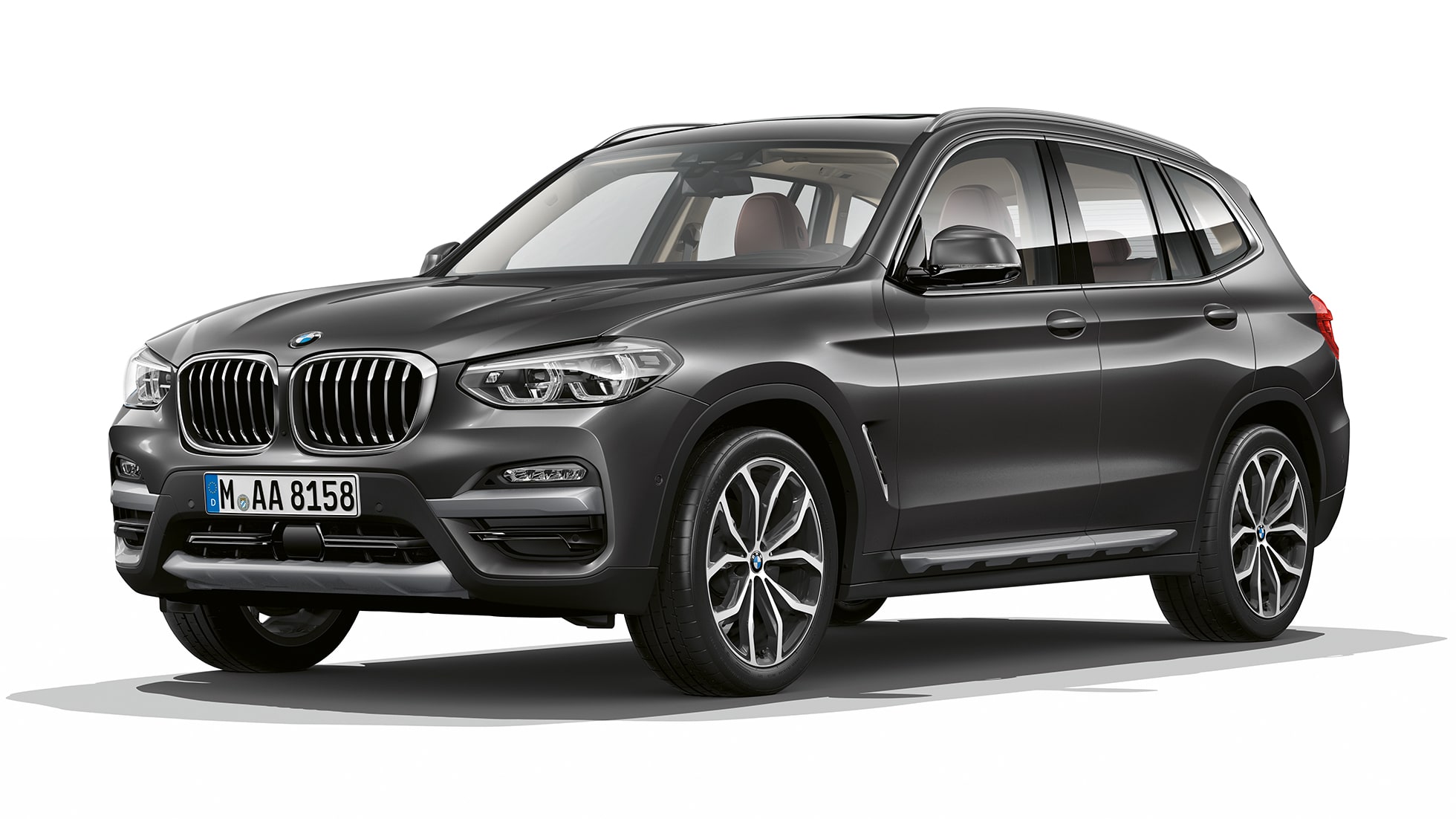

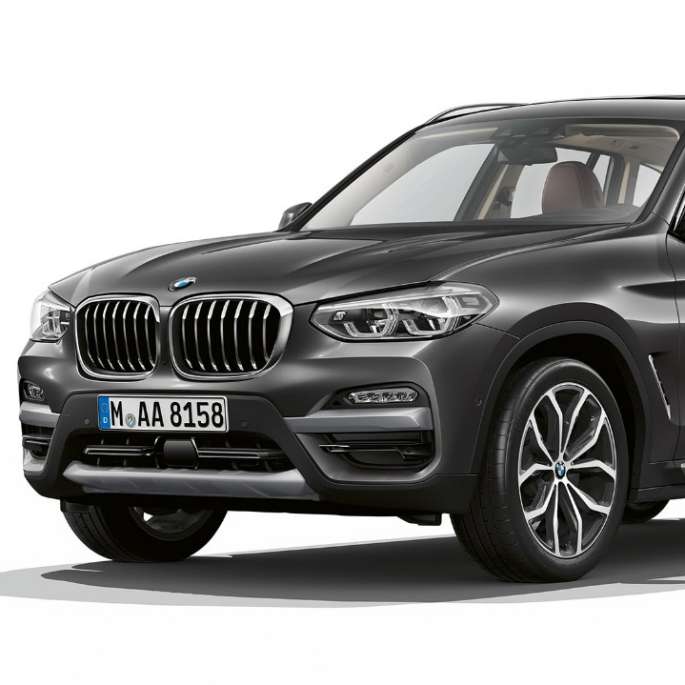

BMW X3 M40i, Model xLine, three-quarter front shot
BMW X3 M40i, Model xLine, three-quarter front shot

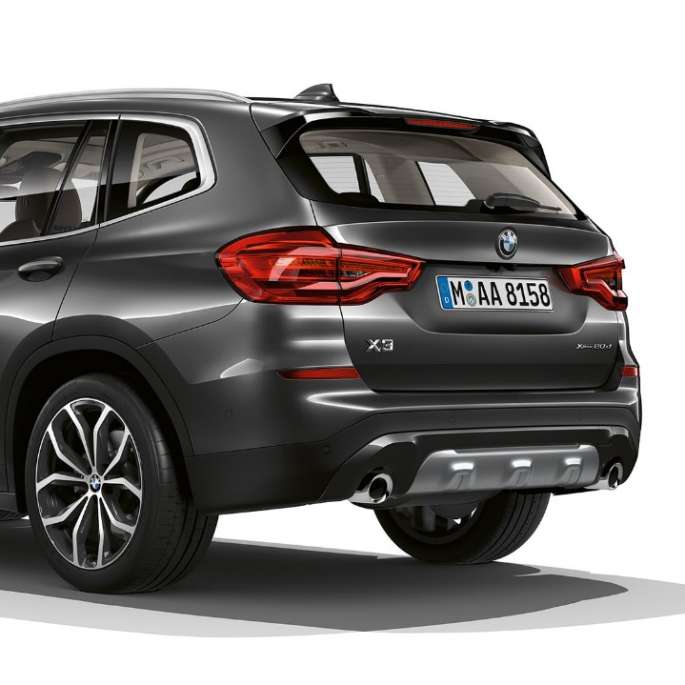

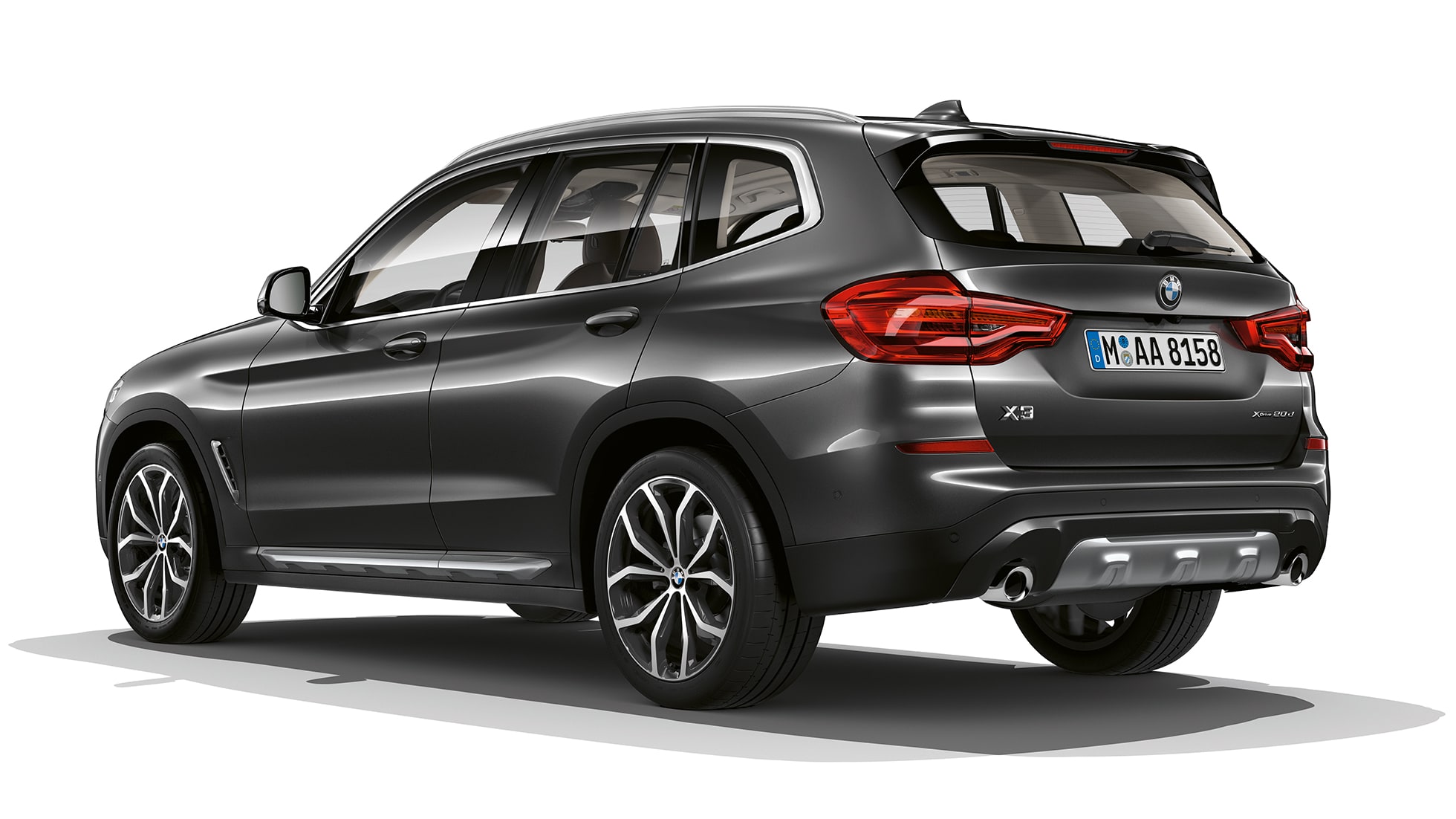

BMW X3 M40i, Model xLine, three-quarter rear shot
BMW X3 M40i, Model xLine, three-quarter rear shot

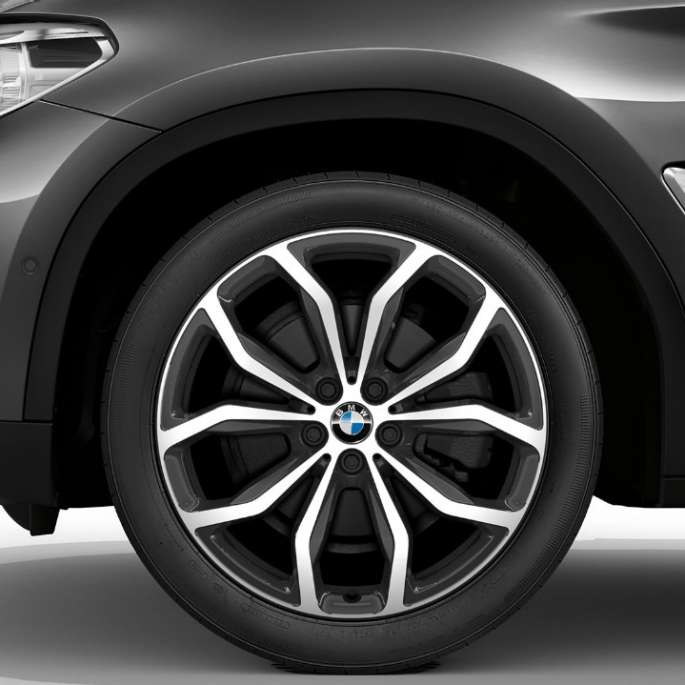

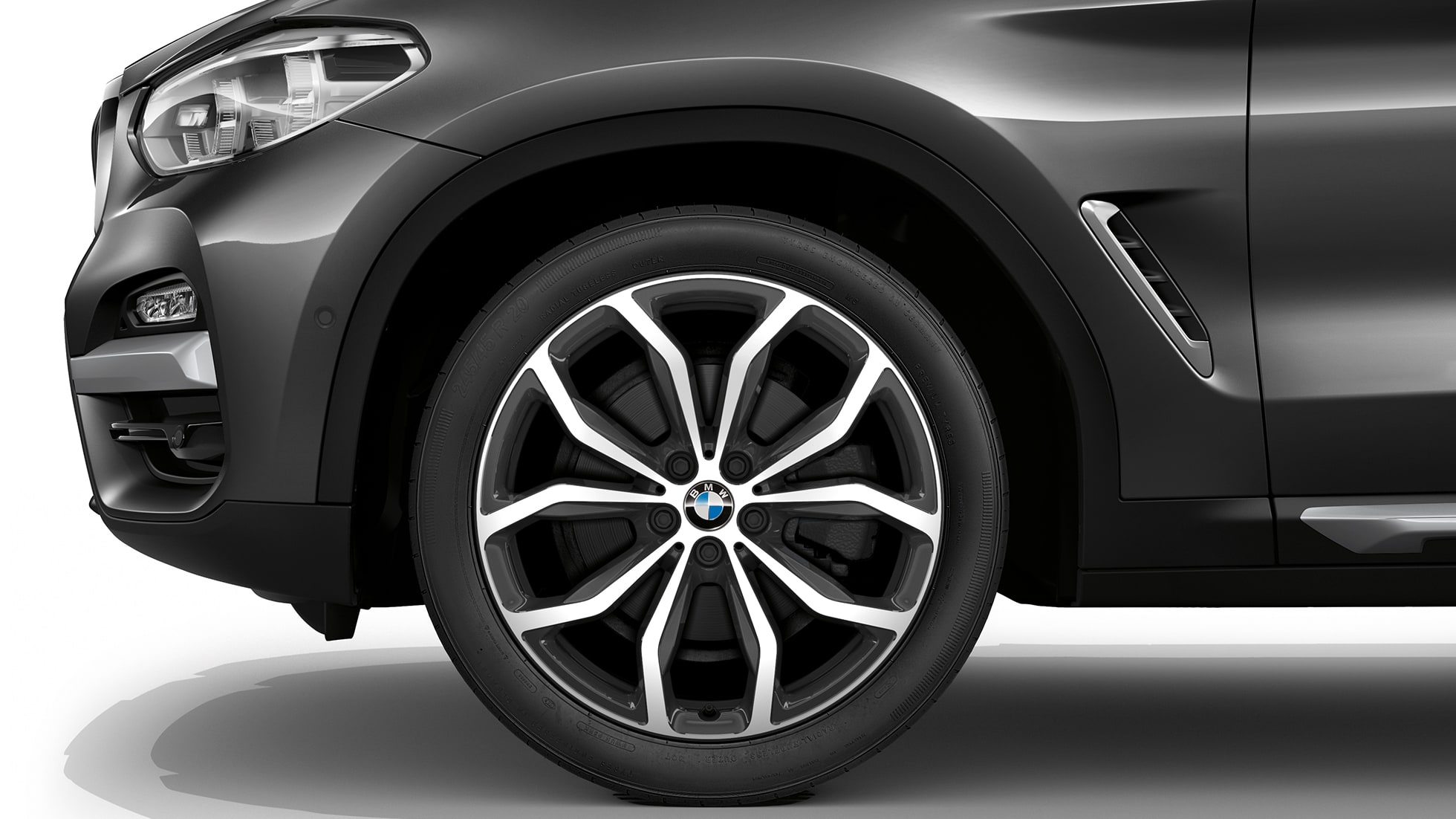

BMW X3 M40i, Model xLine, wheels
BMW X3 M40i, Model xLine, wheels

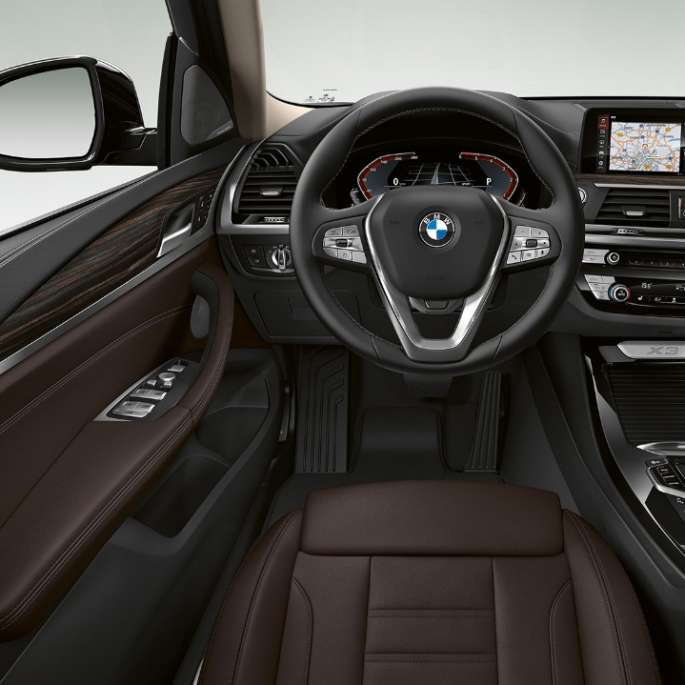

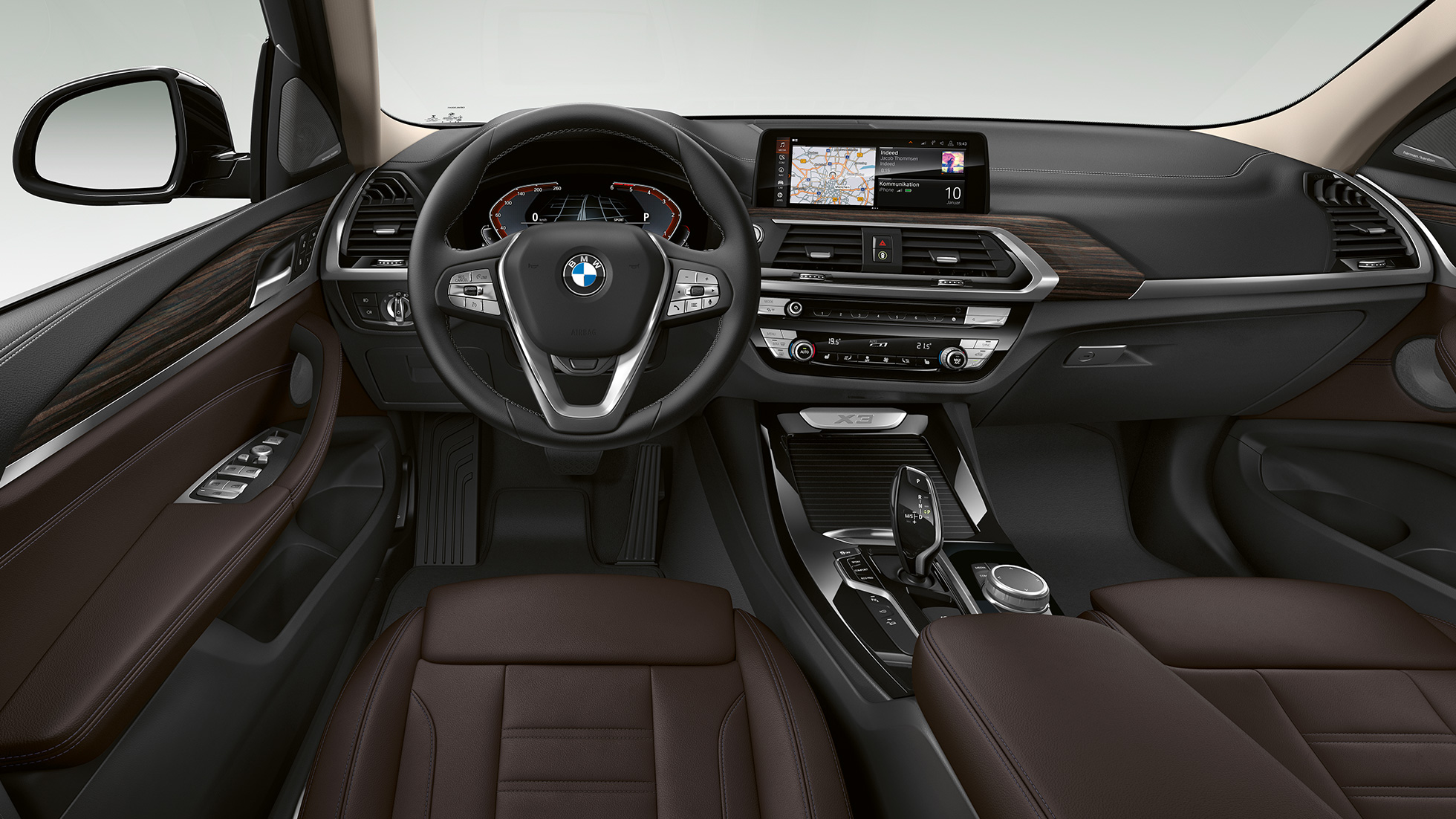

BMW X3 M40i, Model xLine, interior
BMW X3 M40i, Model xLine, interior

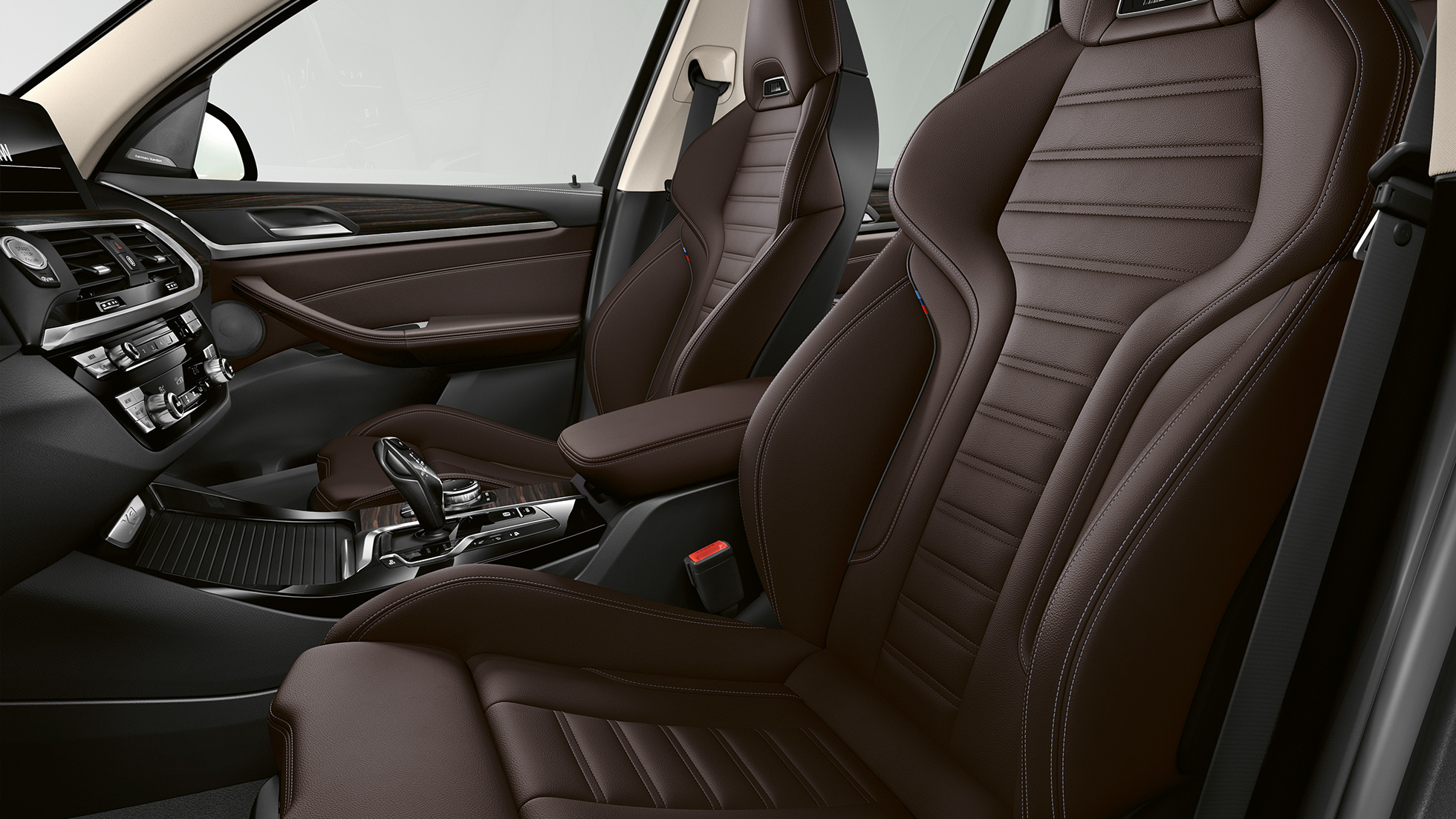

BMW X3 M40i, Model xLine, seats
BMW X3 M40i, Model xLine, seats

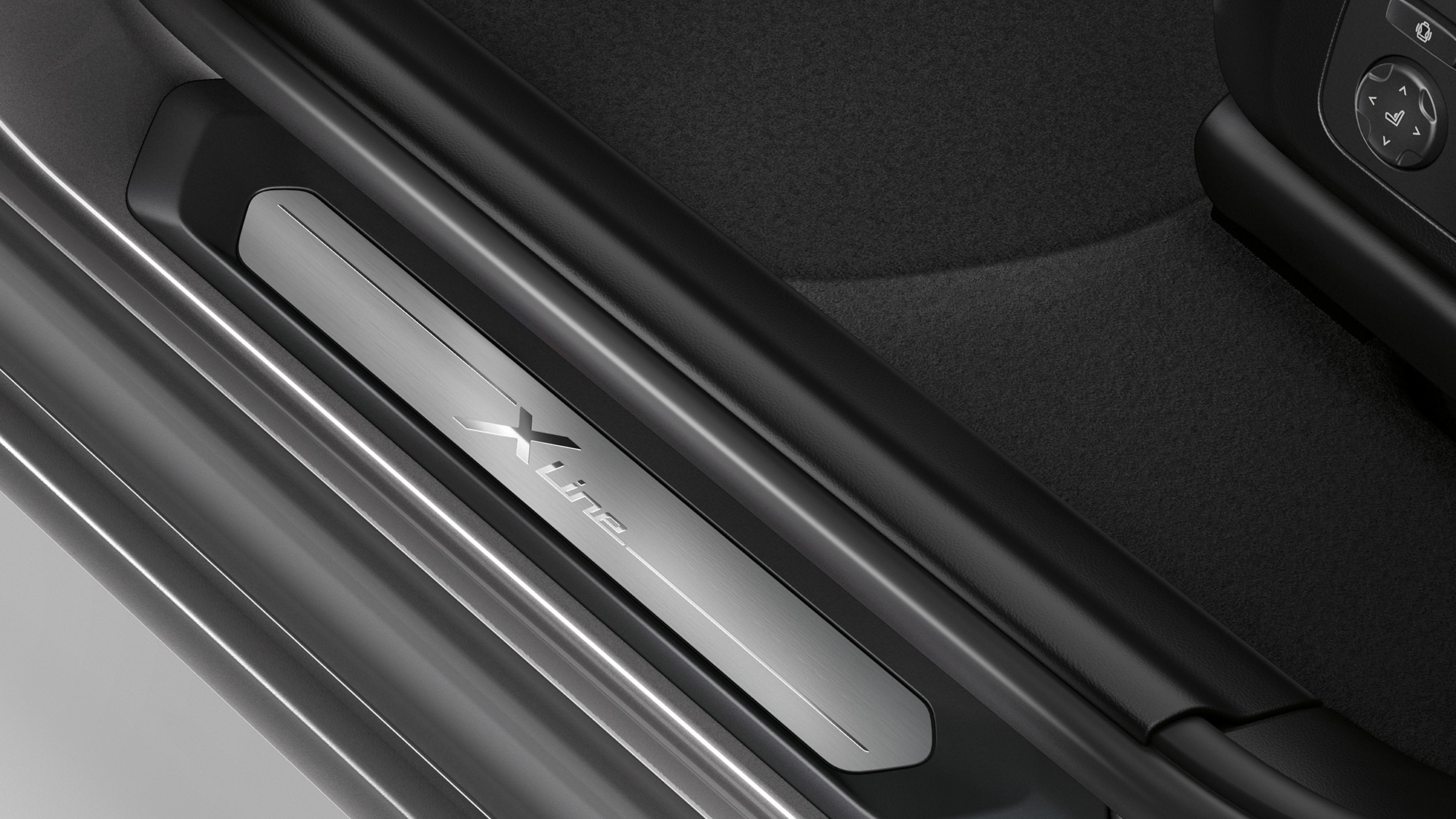

BMW X3 M40i, Model xLine, door sill finisher
BMW X3 M40i, Model xLine, door sill finisher
  • Exterior

    • BMW kidney grille with seven exclusively designed vertical slats with front sides in Aluminium matt, grille frame in Chrome high-gloss

    • Accents in lateral air inlets in Aluminium matt

    • LED headlights

    • LED fog lights

    • 19" light alloy wheels Y-spoke style 694 in Ferric Grey; other wheels available

    • Air breather in aluminium with satinised look

    • Side window frame, window guide and window recess finisher in Aluminium with satinised look, B- and C-pillar in Black high-gloss

    • Side skirts trim in Aluminium matt

  • Interior

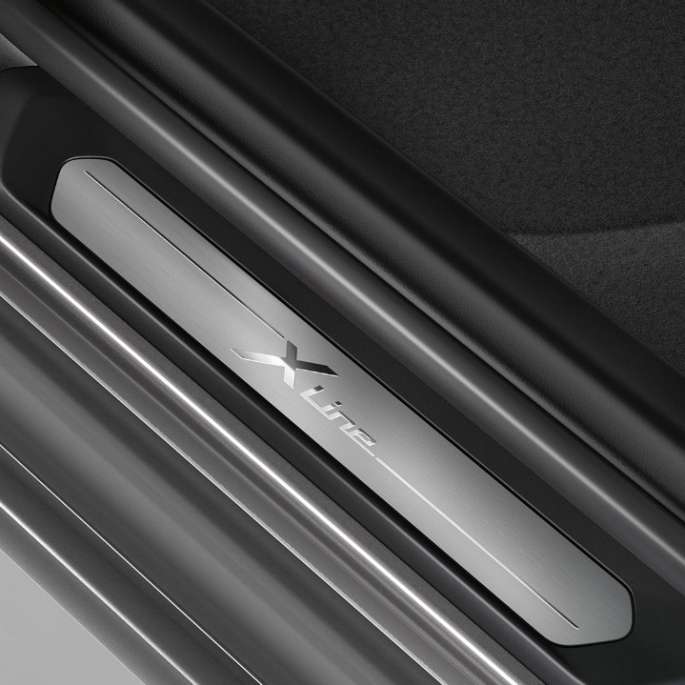

    • Door sill finishers in aluminium with “BMW xLine” lettering

    • Sport seats for driver and passenger in Leather Vernasca other upholsteries available

    • Sport leather steering wheel incl. multifunction

    • Interior trim finishers in Fine-wood trim Fineline Cove with highlight trim finisher Pearl Chrome other trims available

    • Ambient light

    • 3-zone climate control

Model M Sport

Stylish motorsport sensation included: the optional Model M Sport includes the M aerodynamics package with prominent front apron and large air inlets. Rounding off the sporty exterior are the athletic 19’’ M light alloy wheels Double-spoke style 698 M Bicolour Ferric Grey gloss and the dynamic rear apron in Dark Shadow metallic.

Show Line Details

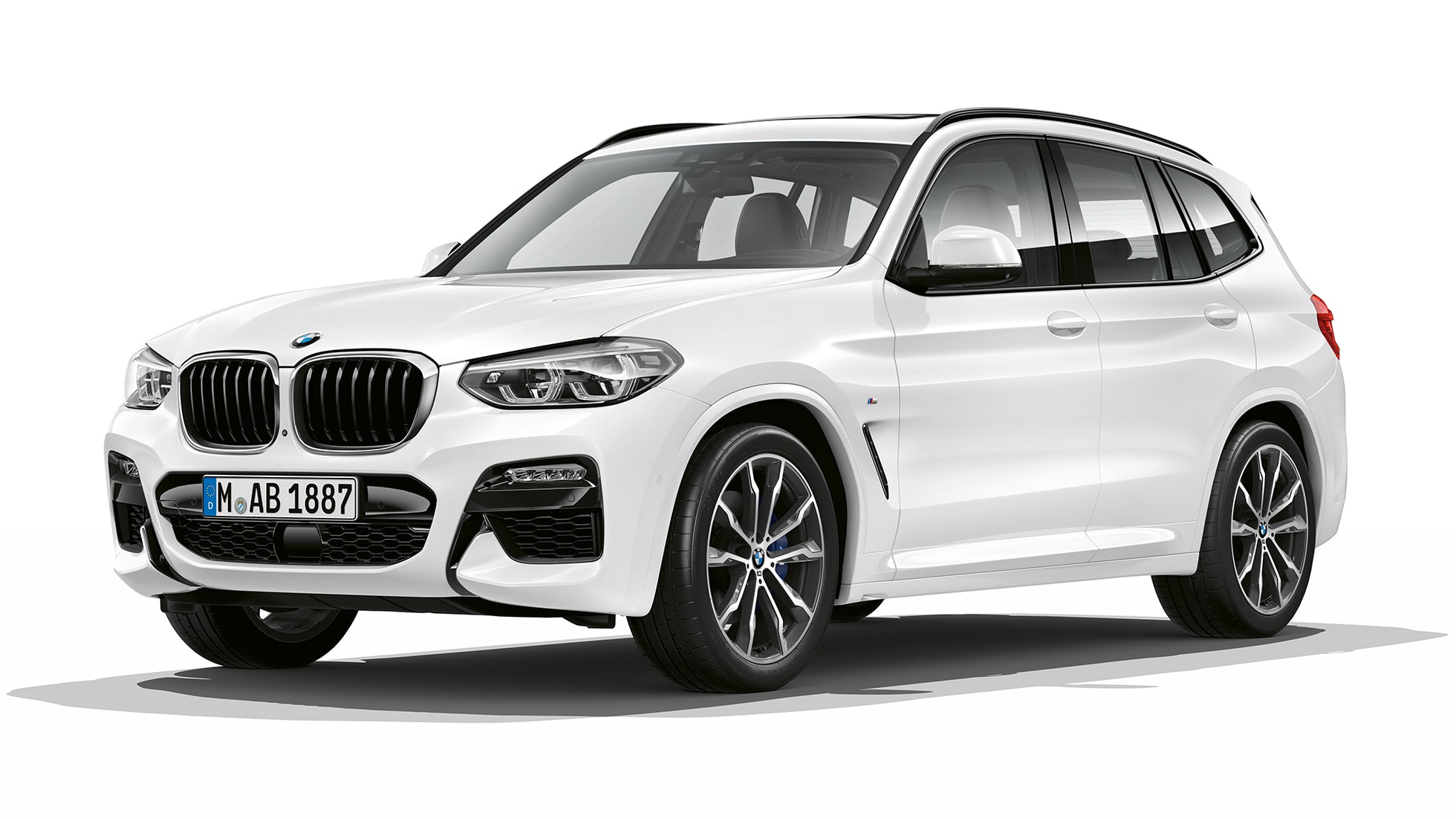

BMW X3 M40i, Model M Sport

Stylish motorsport sensation included: the optional Model M Sport includes the M aerodynamics package with prominent front apron and large air inlets. Rounding off the sporty exterior are the athletic 19’’ M light alloy wheels Double-spoke style 698 M Bicolour Ferric Grey gloss and the dynamic rear apron in Dark Shadow metallic.

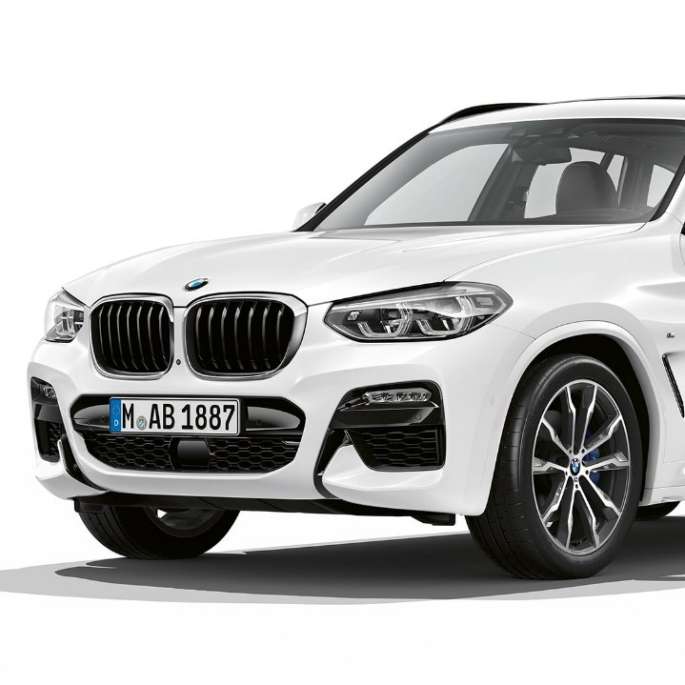

BMW X3 M40i, Model M Sport, three-quarter front shot
BMW X3 M40i, Model M Sport, three-quarter front shot

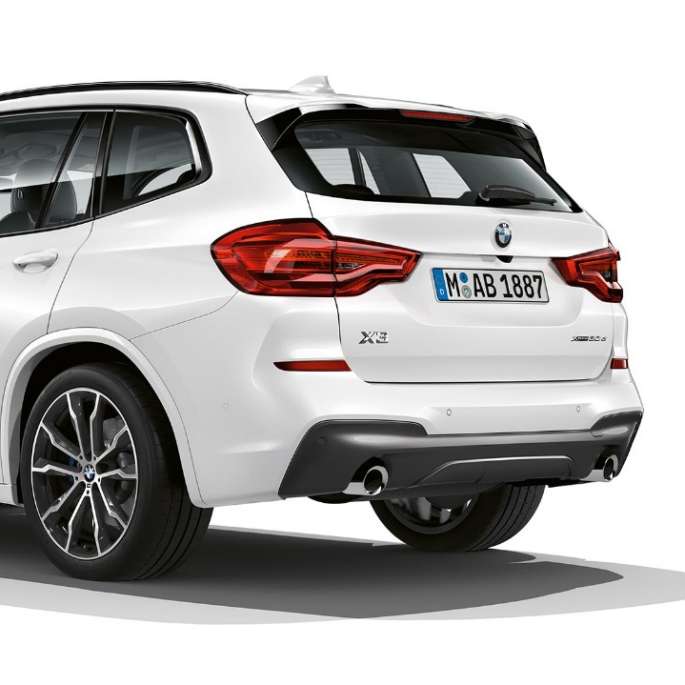

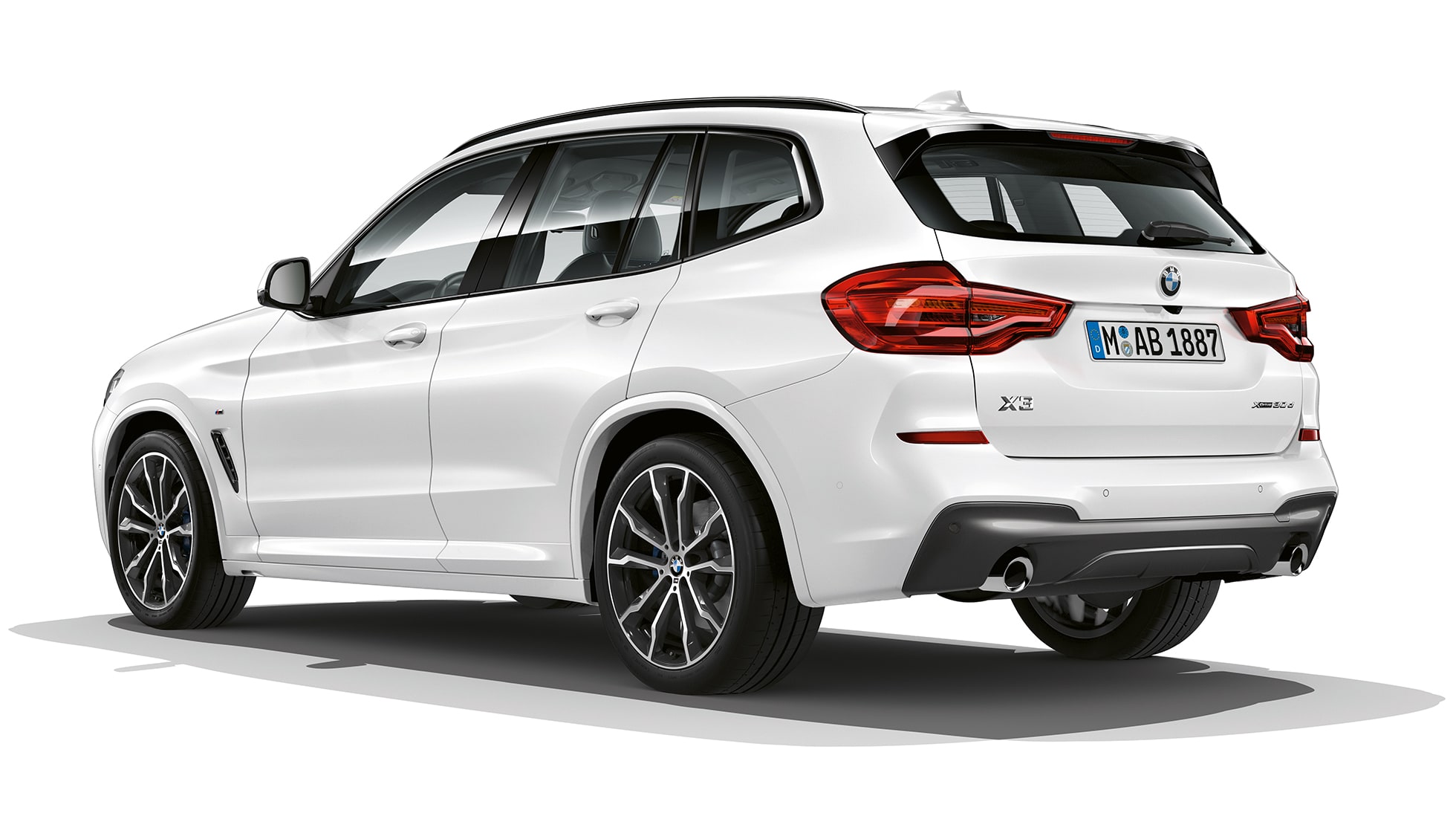

BMW X3 M40i, Model M Sport, three-quarter rear shot
BMW X3 M40i, Model M Sport, three-quarter rear shot

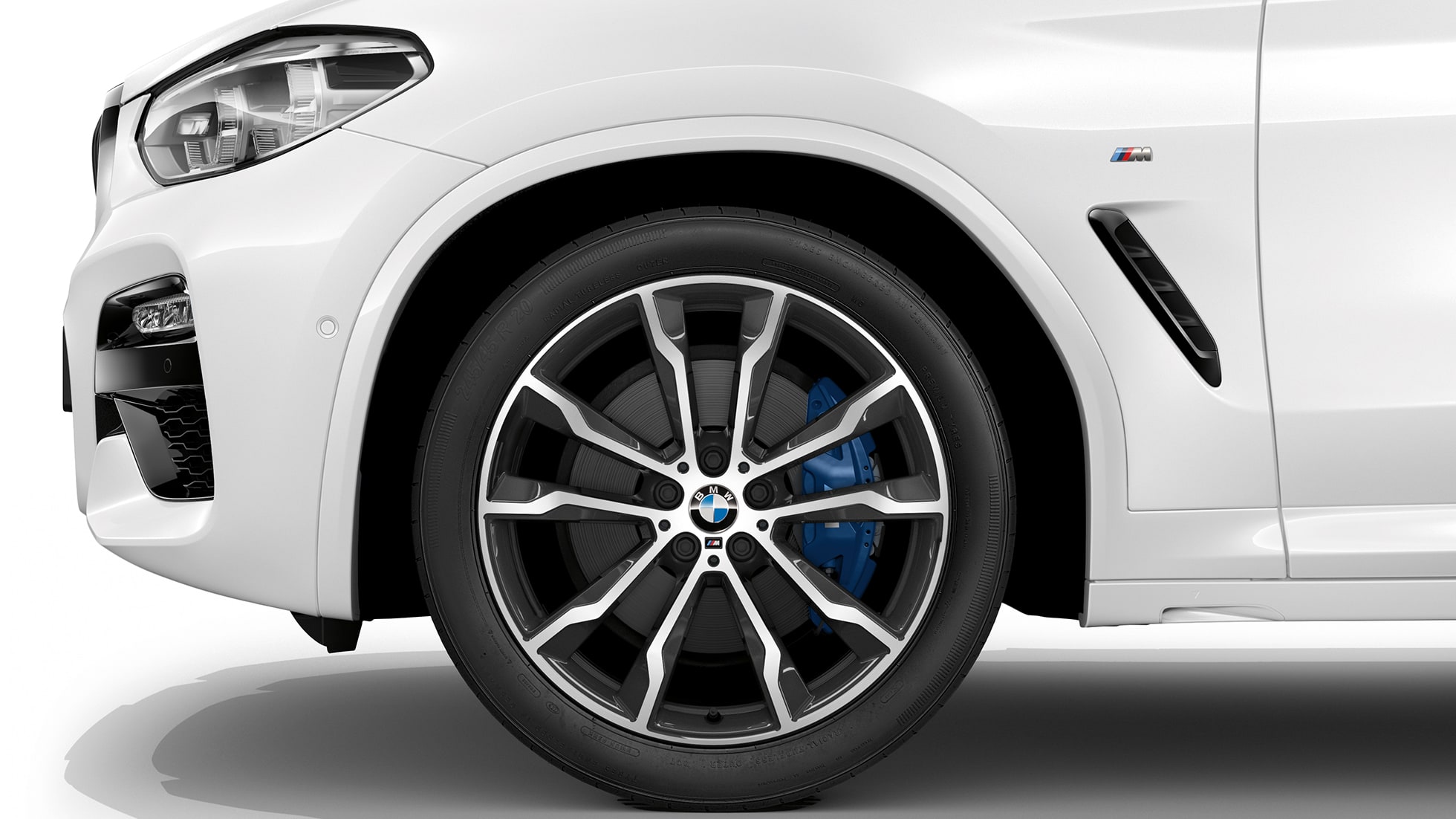

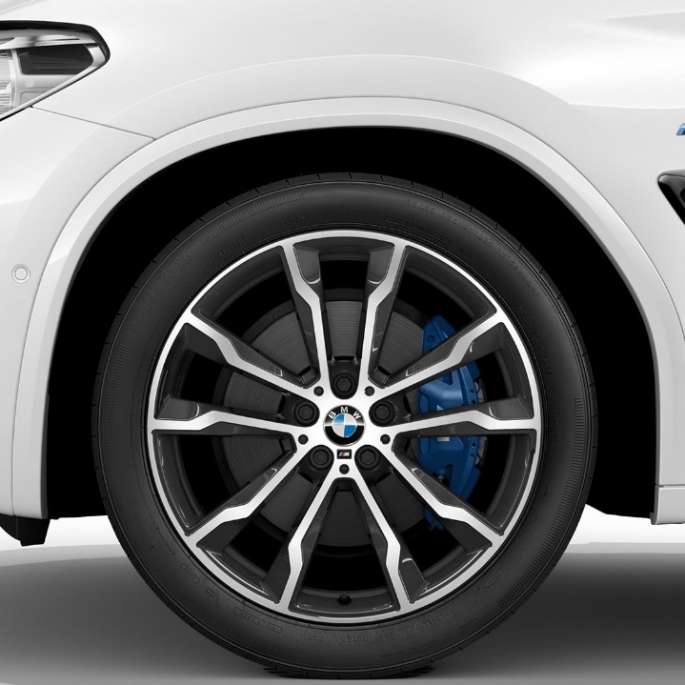

BMW X3 M40i, Model M Sport, wheels
BMW X3 M40i, Model M Sport, wheels

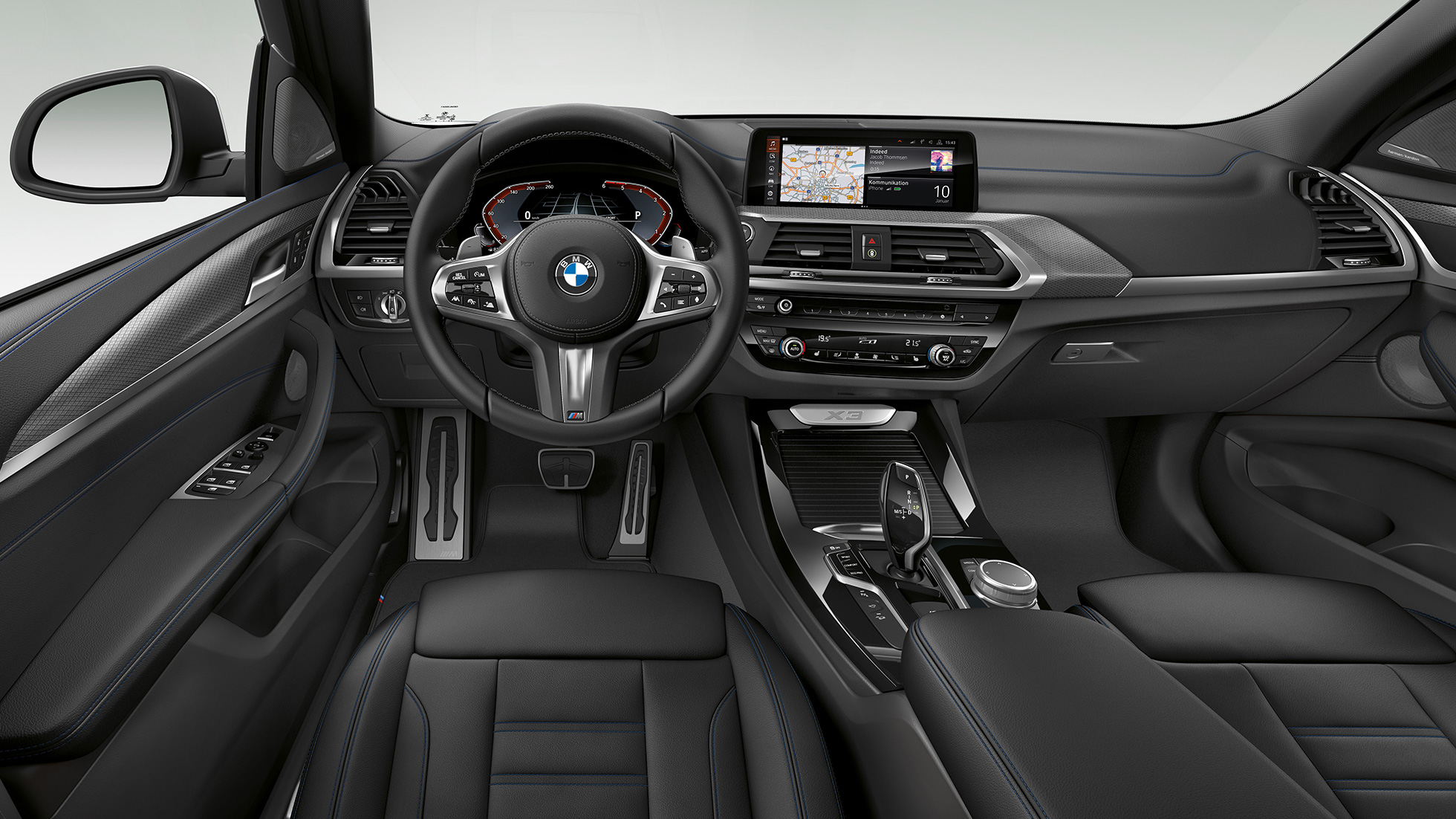

BMW X3 M40i, Model M Sport, interior
BMW X3 M40i, Model M Sport, interior

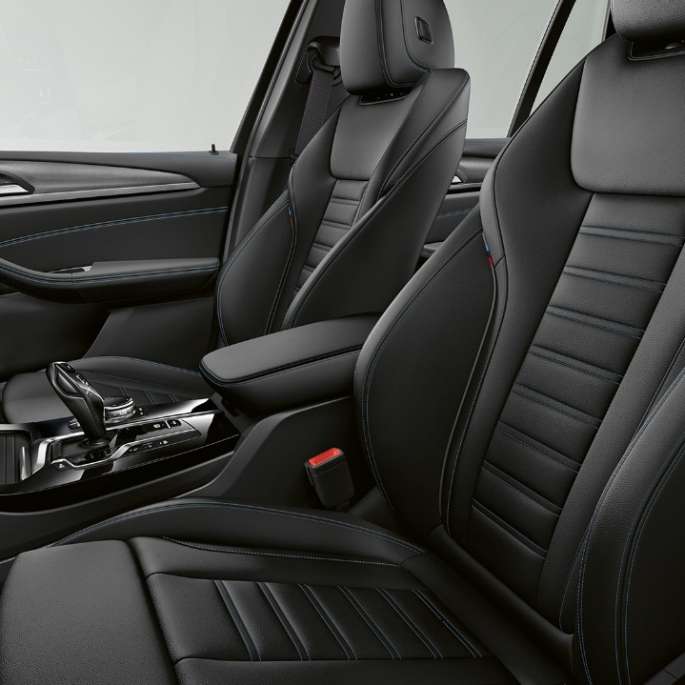

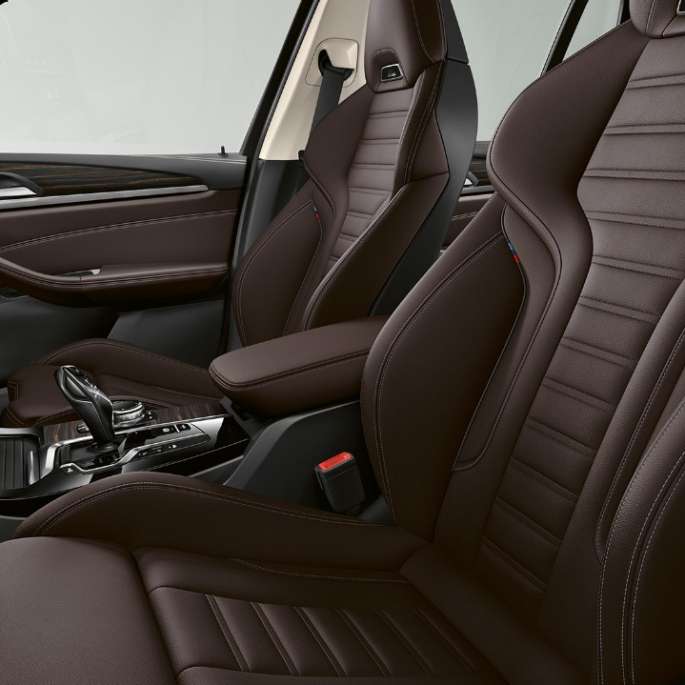

BMW X3 M40i, Model M Sport, seats
BMW X3 M40i, Model M Sport, seats

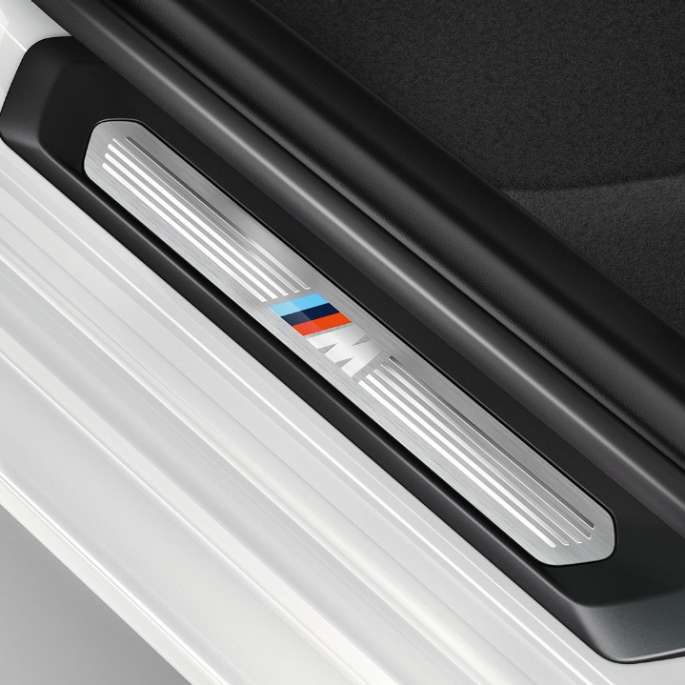

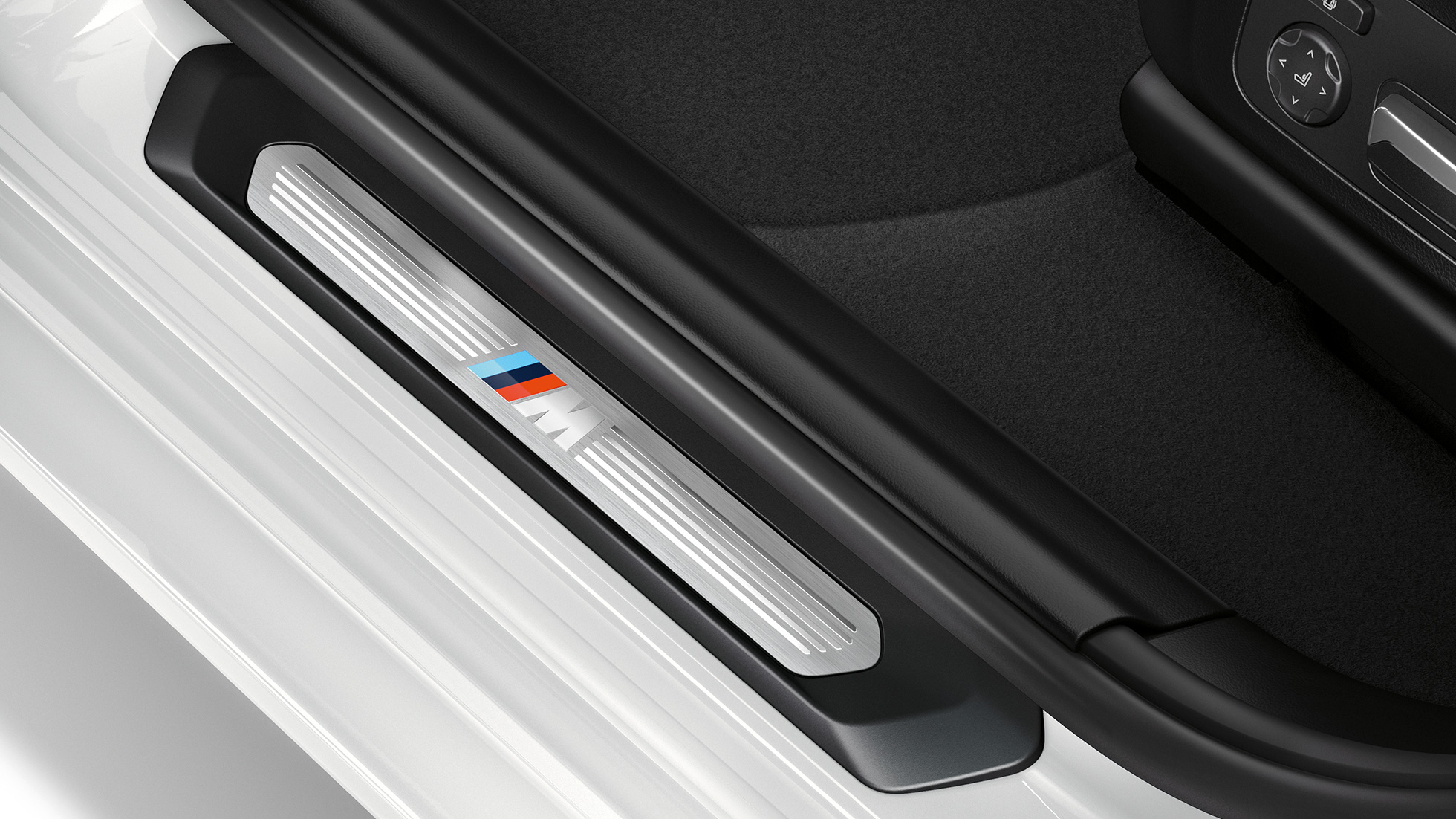

BMW X3 M40i, Model M Sport, door sill finisher
BMW X3 M40i, Model M Sport, door sill finisher
  • Exterior

    • M Aerodynamics package with front apron, side skirts and wheel arch trims in body colour

    • LED headlights

    • LED fog lights

    • 19" M light alloy wheels Double-spoke style 698 M Bicolour Ferric Grey gloss-lathed with run-flat properties; other wheels available

    • M Sport suspension, optionally Adaptive suspension

    • Performance Control

    • Variable sport steering

    • BMW Individual roof rails high-gloss Shadow Line

    • BMW Individual high-gloss Shadow Line, alternatively

  • Interior

    • M door sill finishers, M driver footrest and M specific pedals

    • Sport seats for driver and front passenger in Exclusive leather 'Vernasca' Black with blue contrast stitching featuring instrument panel in Sensatec with blue stitching; other upholsteries available

    • M Leather steering wheel with multifunction buttons and gearshift paddles

    • Car key with exclusive M designation

    • BMW Individual headliner anthracite

    • Interior trim finishers in Aluminium Rhombicle with highlight trim finishers in Pearl Chrome, other trims available

    • Ambient light

    • M specific floor mats in velour

IMPRESSIVE POWER.

Driving dynamics of the BMW X3.

The BMW X3 presents its athletic and dynamic look. Thanks to its intelligent lightweight construction concept and precisely coordinated aerodynamics measures, it provides an impressively agile and high-torque response in every driving situation. The air vent control of the Active air stream kidney grille is unique – if demand for cooling air is low, one air vent remains closed automatically, thus providing a further enhancement in aerodynamics.

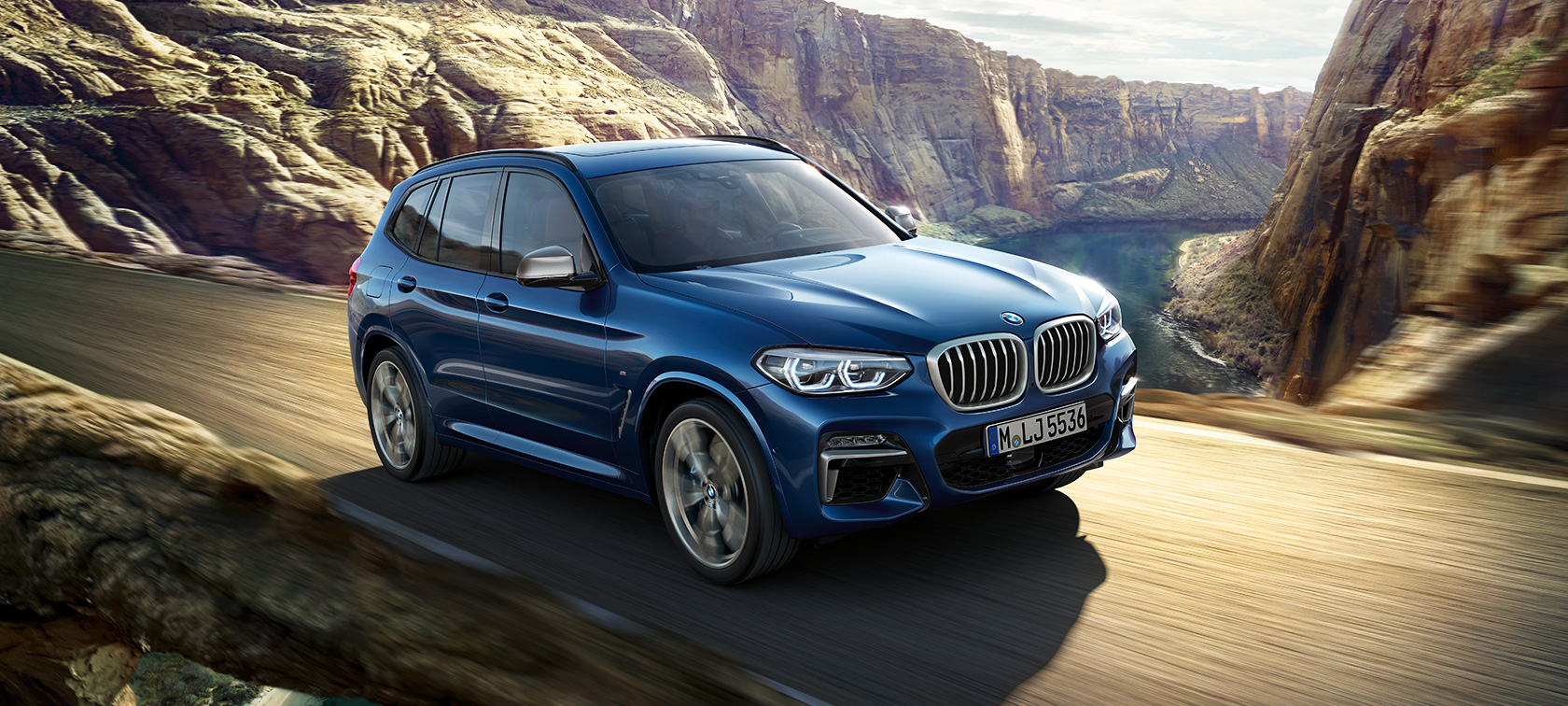

BMW X3 M40i, driving shot in front of canyon

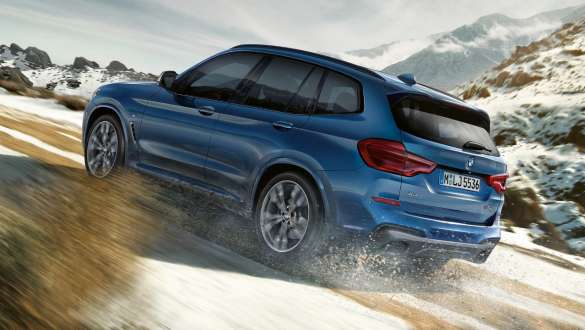

BMW X3 M40i, BMW xDrive

BMW xDrive.

The intelligent BMW xDrive all-wheel drive system smoothly and variably distributes drive power to the front and rear wheels for maximum traction, driving dynamics and safety in every driving situation. For even better agility, the electronically controlled power distribution for instance counterbalances oversteer or understeer on bends.

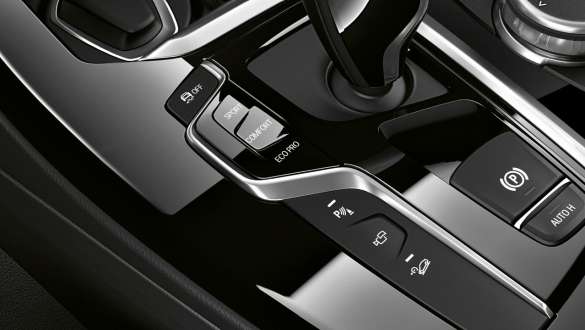

BMW X3 M40i, Driving experience control

Driving Experience Control.

The Driving Experience Control offers the driver the choice between the standard COMFORT mode, ECO PRO Mode, geared towards efficiency, and SPORT mode, which enables even more dynamic driving. The new interactive Adaptive Mode function continuously adjusts the adaptive suspension, the steering and the Steptronic transmission to suit the current driving situation.

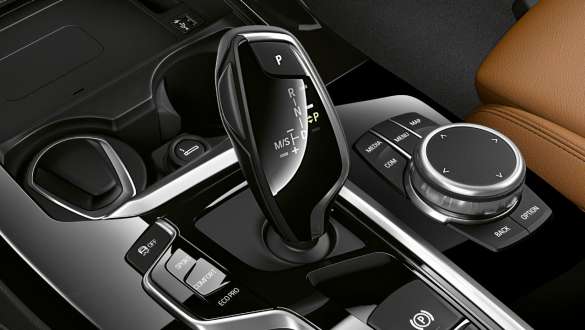

BMW X3 M40i, Steptronic Sport transmission

Steptronic Sport transmission.

The 8-speed Steptronic Sport transmission offers incredibly sporty gear changes. Whether automatic or manual using gearshift paddles or gear lever - for comfortable coasting or incredibly dynamic driving. In SPORT mode and with the gear lever in the lefthand S/M position, the gear shifts are configured for maximum performance.
BMW X3 M40i, Aerodynamics

Aerodynamics.

With targeted measures focusing on Aerodynamics, BMW has optimised drag coefficient and efficiency as well as interior acoustics. Fuel consumption has also been reduced. The Active air stream kidney grille, the Air Breather, the Air curtain on the front wheels and the Aero wheels are all targeted and detailed measures to further reduce air resistance.

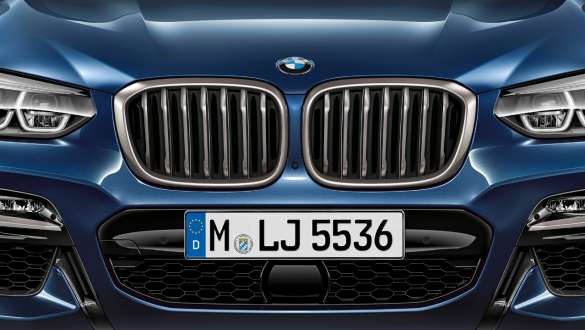

BMW X3 M40i, Active air stream kidney grille

Active air stream kidney grille.

The Active air stream kidney grille represents the cutting edge of aerodynamic performance. When a cooling airflow is not needed, it electronically closes the radiator grille with its air vents and thereby reduces the amount of air flowing into the engine bay. This optimises both the aerodynamics and consumption rates.

DIRECTIONAL STABILITY AT THE PUSH OF A BUTTON.

Driver assistance systems of the BMW X3.

Highly modern driver assistance systems further elevate the driving experience in the BMW X3. The revised operating concept inspires with intuitive user guidance and practical digital functions – with maximum focus on your needs and on the path towards autonomous driving.

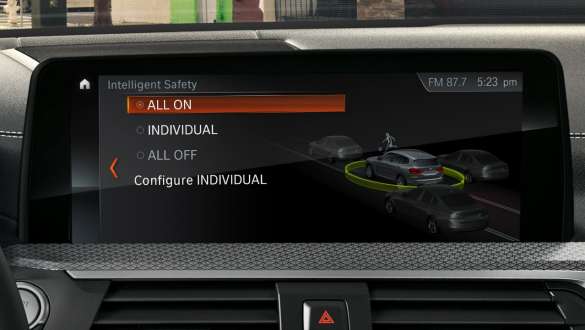

BMW X3 M40i, Driving Assistant Plus

Driving Assistant.

Driving Assistant offers greater comfort and security during monotonous or complex driving situations. These can include traffic jams, stop-and-go traffic or long journeys through the city, on country roads or motorways, along with navigating junctions and lane changes.

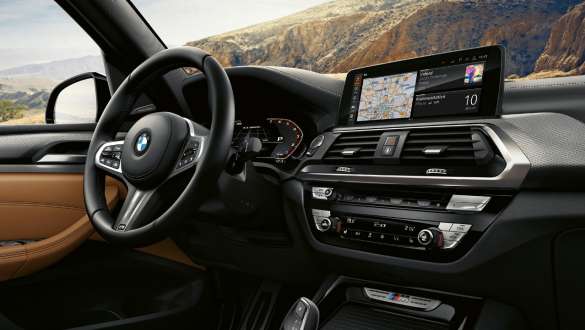

BMW X3 M40i, Navigation system Professional

Navigation system Professional.

The optional Navigation system Professional incl. 10.25" LCD colour display and Radio BMW Professional with DVD drive comes with more than 20 GB of memory e.g. for audio files. It is operated intuitively via the iDrive Touch Controller and seven functional bookmarks or alternatively via the Touch Display.

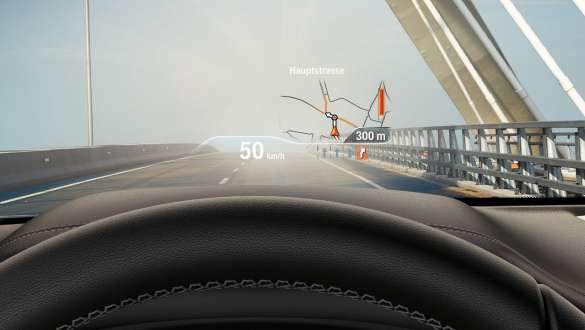

BMW X3 M40i, BMW Head-Up Display

BMW Head-Up Display.

The optional full-colour BMW Head-Up Display projects all information relevant to the journey directly into the driver's field of vision, thereby allowing them to fully concentrate on driving. Information such as the current speed, navigation directions, Speed Limit Info including no-overtaking indicator, along with telephone and entertainment lists are displayed.
BMW X3 M40i, Multifunctional instrument display

Multifunctional instrument display.

The optional Multifunctional instrument display with Black Panel technology and a screen diagonal of 12'' provides a highly impressive visualisation of the driving experience. Three different modes and their specific displays – each of them have their own colour scheme and graphic style – can be displayed in the instrument cluster: ECO PRO, COMFORT and SPORT.

SEAMLESSLY CONNECTED.

Digital Services in the BMW X3.

Be connected with friends and the world while you are travelling, use exclusive services and smart apps, the BMW X3 establishes a class of its own in terms of connectivity and comfort.

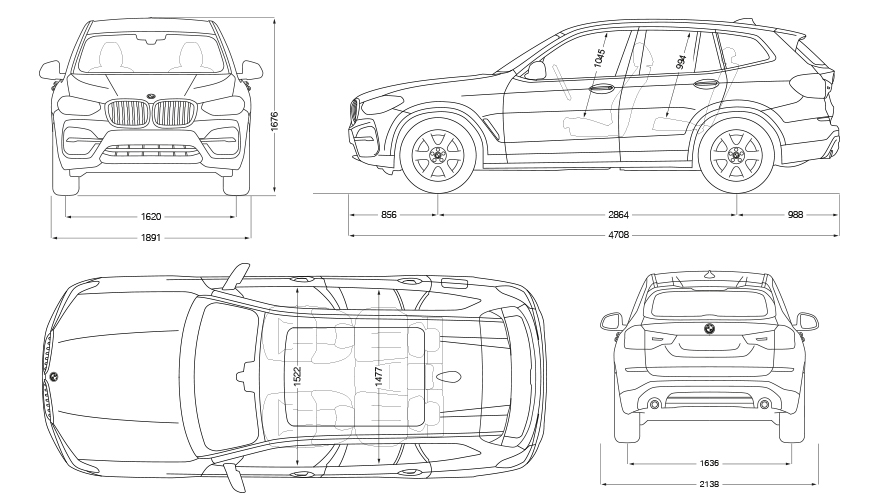

TECHNICAL DATA.

Weight
Unladen weight EU in kg
1,790
Max. permissible weight in kg
2,400
Permitted load in kg
660
Permitted axle load front/rear in kg
1,140/1,370
Luggage capacity min. (seats up or roof down) in l
550
Luggage capacity max. (seats down or roof up) in l
1,600
Trailer load (unbraked) in kg
750
Trailer load 8% (braked) in kg
2,000
Trailer load 12% (braked) in kg
2,000
Engine
Cylinders/valves
4/4
Capacity in ccm
1,998
Stroke/bore in mm
94.6/82.0
Engine power in kW (PS) at 1/min
135 (184)/5,000-6,500
Engine torque (Nm) at 1/min
290/1,350-4,250
Compression ratio : 1
11.0
Performance
Top speed in km/h
215
Acceleration 0–100 km/h in s
8.3
Fuel consumption
Urban in l/100 km
8.9
Extra-urban in l/100 km
6.8
Combined in l/100 km
7.6
CO2 combined emissions in g/km
173
Tank capacity, approx. in l
65
Wheels
Tyre dimensions front
225/60 R18 104W XL
Tyre dimensions rear
225/60 R18 104W XL
Wheel dimensions and material front
7 J x 18 inches, light-alloy
Wheel dimensions and material rear
7 J x 18 inches, light-alloy
Weight
Unladen weight EU in kg
1,790
Max. permissible weight in kg
2,400
Permitted load in kg
660
Permitted axle load front/rear in kg
1,140/1,370
Luggage capacity min. (seats up or roof down) in l
550
Luggage capacity max. (seats down or roof up) in l
1,600
Trailer load (unbraked) in kg
750
Trailer load 8% (braked) in kg
2,000
Trailer load 12% (braked) in kg
2,000
Engine
Cylinders/valves
4/4
Capacity in ccm
1,998
Stroke/bore in mm
94.6/82.0
Engine power in kW (PS) at 1/min
185 (252)/5,200-6,500
Engine torque (Nm) at 1/min
350/1,450-4,800
Compression ratio : 1
10.2
Performance
Top speed in km/h
240
Acceleration 0–100 km/h in s
6.3
Fuel consumption
Urban in l/100 km
9.1
Extra-urban in l/100 km
6.7
Combined in l/100 km
7.6
CO2 combined emissions in g/km
174
Tank capacity, approx. in l
65
Wheels
Tyre dimensions front
225/60 R18 104W XL
Tyre dimensions rear
225/60 R18 104W XL
Wheel dimensions and material front
7 J x 18 inches, light-alloy
Wheel dimensions and material rear
7 J x 18 inches, light-alloy
Weight
Unladen weight EU in kg
1,885
Max. permissible weight in kg
2,455
Permitted load in kg
640
Permitted axle load front/rear in kg
1,190/1,375
Luggage capacity min. (seats up or roof down) in l
550
Luggage capacity max. (seats down or roof up) in l
1,600
Trailer load (unbraked) in kg
750
Trailer load 8% (braked) in kg
2,000
Trailer load 12% (braked) in kg
2,000
Engine
Cylinders/valves
6/4
Capacity in ccm
2,998
Stroke/bore in mm
94.6/82.0
Engine power in kW (PS) at 1/min
260 (354)/5,500-6,500
Engine torque (Nm) at 1/min
500/1,520-4,800
Compression ratio : 1
11.0
Performance
Top speed in km/h
250
Acceleration 0–100 km/h in s
4.8
Fuel consumption
Urban in l/100 km
11.7
Extra-urban in l/100 km
7.5
Combined in l/100 km
8.9
CO2 combined emissions in g/km
204
Tank capacity, approx. in l
65
Wheels
Tyre dimensions front
245/45 R20 103W XL
Tyre dimensions rear
275/40 R20 106W XL
Wheel dimensions and material front
8 J x 20 inches, light-alloy
Wheel dimensions and material rear
9.5 J x 20 inches, light-alloy

REGISTER NOW FOR EXCLUSIVE OFFERS.

Register now to stay tuned for our latest offer exclusive for the BMW X3.

Fuel consumption and CO2 emissions.

  • BMW X3 M40i:
    Fuel consumption in l/100 km (combined): 8.4-8.2
    CO2 emissions in g/km (combined): 193-188

    The information on fuel consumption, CO2 emissions and energy consumption has been determined in accordance with the prescribed measurement procedure VO (EU) 715/2007 in the version applicable at the time of type approval. The figures refer to a vehicle with basic configuration in Germany and the range shown considers optional equipment and the different size of wheels and tires available on the selected model.

    Further information about the official fuel consumption and the official specific CO2 emissions for new passenger automobiles can be found in the 'New Passenger Vehicle Fuel Consumption and CO2 Emission Guidelines', which are available free of charge at all sales outlets and from DAT Deutsche Automobil Treuhand GmbH, Hellmuth-Hirth-Str. 1, 73760 Ostfildern, Germany and on https://www.dat.de/co2

    The values are already based on the new WLTP regulation and are translated back into NEDC-equivalent values in order to ensure the comparison between the vehicles. For vehicle related taxes or other duties based (at least inter alia) on CO2-emissions the CO2 values may differ to the values stated here.
